Make
Model
CC
Year
SUZUKI
LT QUADRACER
250
1985 - 1986
SUZUKI
LT QUADRACER
250
1987 - 1992
DESCRIPTION

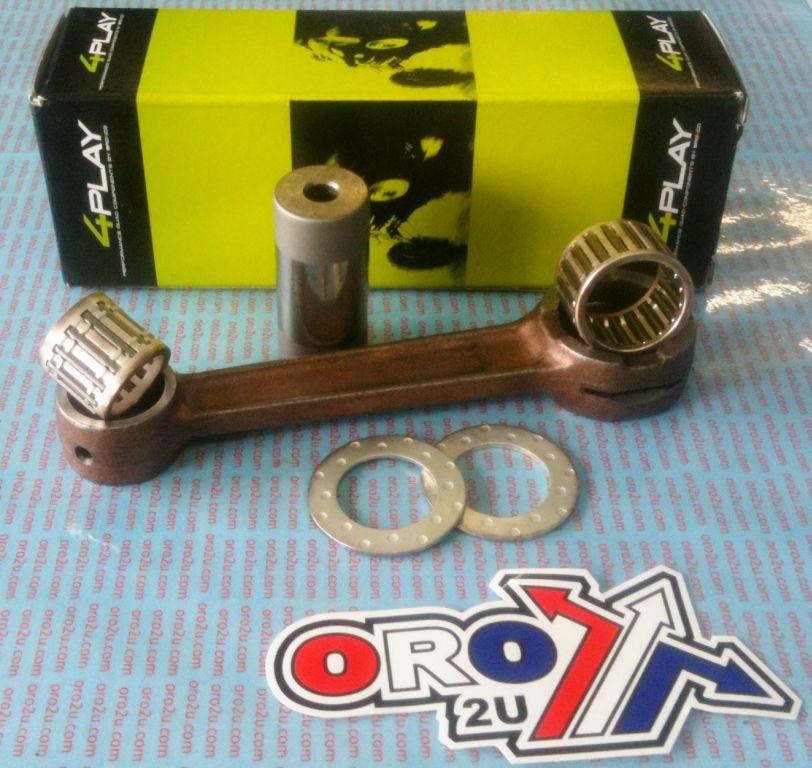

CONNECING CONROD ROD REBUILD KIT
PSYCHIC / 4-PLAY / BRONCO AT-95504 SUZUKI ATV
1987-1992 LT250R Quadracer, - Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Center To Center (mm): 128
Big End Bearing (mm):
Big End Bore (mm): 32
Big End Width (mm):
Big End Pin Diameter (mm): 24
Big End Pin Length (mm): 54.50
Small End Bearing (mm):
Small End Bore (mm): 23
Small End Width (mm):
Washer Thickness (mm): Part No. 56-192.DR Cross reference numbers ONLY.
12211-14301-000, 09160-24015, 12161-00B00 12161-05D00, HOTROD 8164 This part fits: SuzukiLT-250R QuadRacer1987 Suzuki LT-250R QuadRacer 1988 Suzuki LT-250R QuadRacer 1989 Suzuki LT-250R QuadRacer 1990 Suzuki LT-250R QuadRacer 1991 Suzuki LT-250R QuadRacer 1992 Suzuki LT-250R QuadRacer
CONNECING CONROD ROD REBUILD KIT
PSYCHIC / 4-PLAY / BRONCO AT-95504 SUZUKI ATV
1987-1992 LT250R Quadracer, - Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Center To Center (mm): 128
Big End Bearing (mm):
Big End Bore (mm): 32
Big End Width (mm):
Big End Pin Diameter (mm): 24
Big End Pin Length (mm): 54.50
Small End Bearing (mm):
Small End Bore (mm): 23
Small End Width (mm):
Washer Thickness (mm): Part No. 56-192.DR Cross reference numbers ONLY.
12211-14301-000, 09160-24015, 12161-00B00 12161-05D00, HOTROD 8164 This part fits: SuzukiLT-250R QuadRacer1987 Suzuki LT-250R QuadRacer 1988 Suzuki LT-250R QuadRacer 1989 Suzuki LT-250R QuadRacer 1990 Suzuki LT-250R QuadRacer 1991 Suzuki LT-250R QuadRacer 1992 Suzuki LT-250R QuadRacer
