HONDA

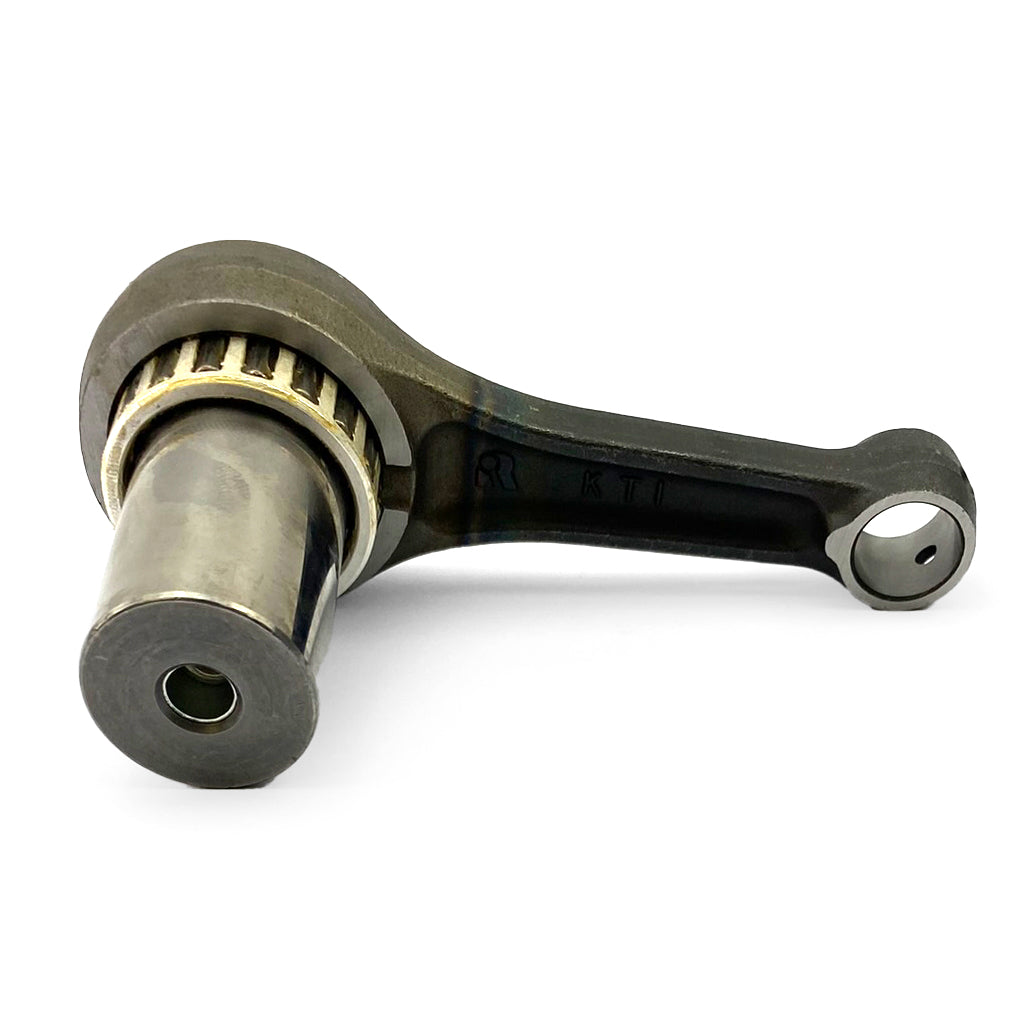

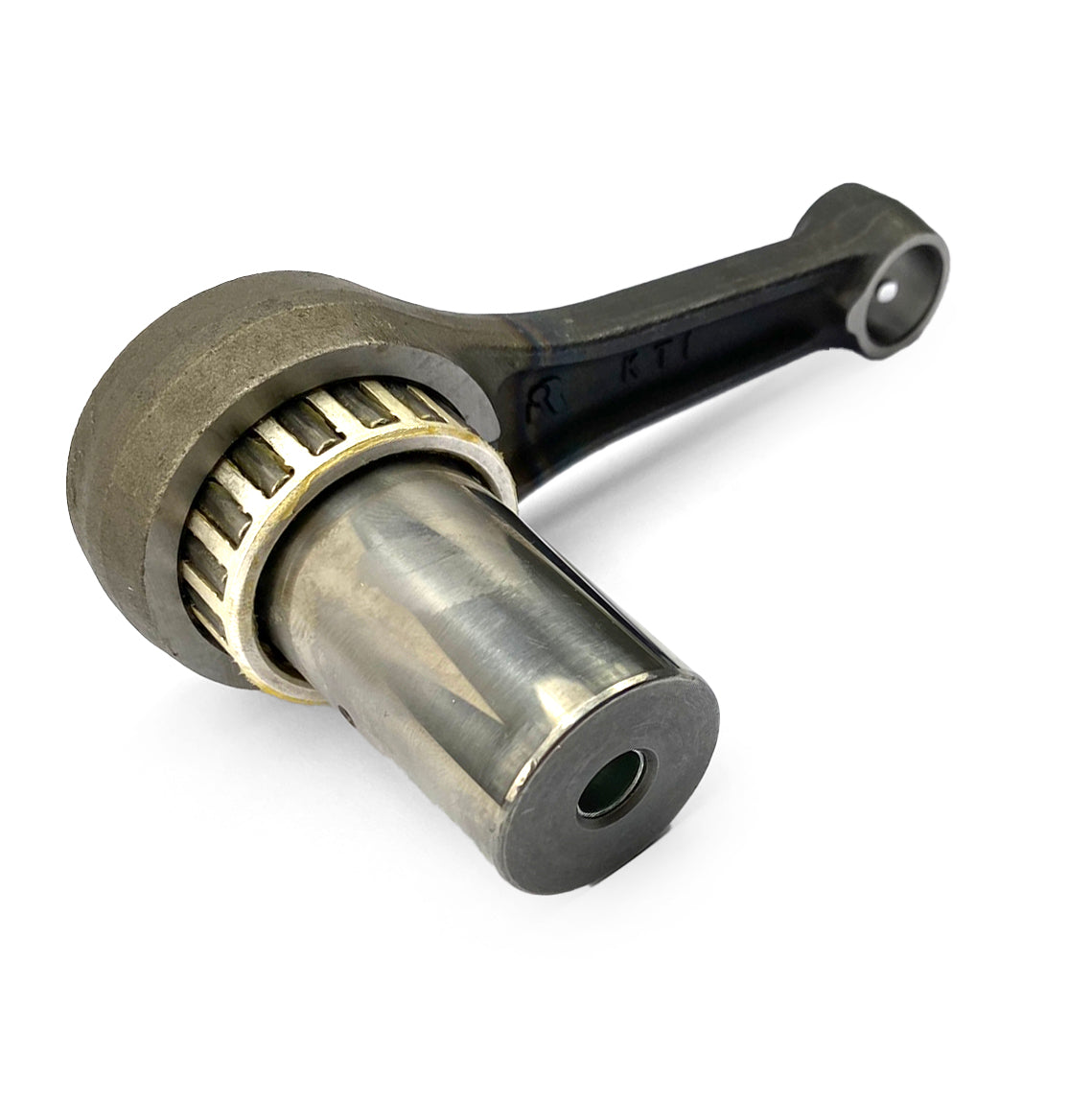

XR250, XLR250R CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 105, B = 17, C = 32, D = 18, E = 18, F = 58
PIN: DIA 32 X L 58
BIG END BEARING:32x41x17.8
DOES NOT COME WITH WASHERS SIZE MM Centre 2 Centre 105 Small End Bearing 17x20x16.8 Small End Bore Ø 20 Small End Width 18 Big End Bearing 32x41x17.8
Big End Bore Ø 41 Big End Width 18
Big End Pin Ø 32 Big End Pin Length 58
Washer Thickness NONE - Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
- Manufactured to exacting standards for total confidence.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- Please see image before ordering to avoid mistakes.
- Best value for money.
- ORO products are a high quality replacement part and carries our guarantee of your satisfaction. Cross reference numbers.
13201-KT1-000 13000-KCE-670

Part No. 56-987.R ()
