Part No. 48-210.OR

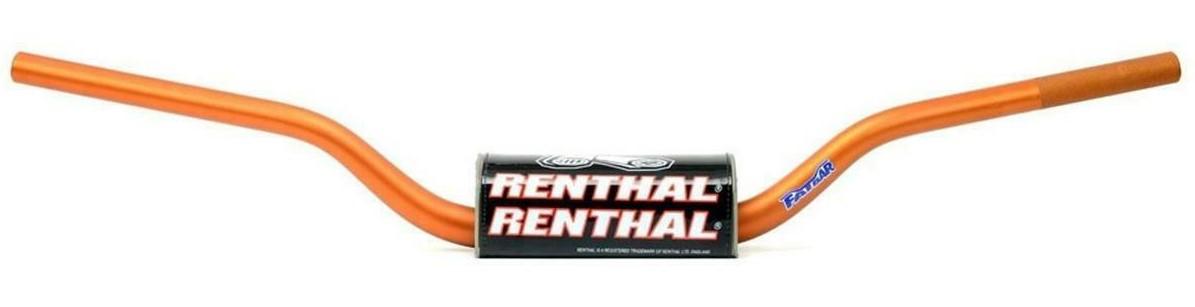

ORANGE Fatbar 1 1/8 inc. Handlebar 604 RC 604-01-OR

Renthal RC Handlebar Bend

Fitting almost perfectly in the middle of the Renthal range of bends, the RC Handlebar Bend is one of the most popular among all bends.

Popularized by Ricky Carmichael during his time at Pro Circuit Kawasaki and American Honda, this bar has been adopted by many top-level riders since, including MX2 World Champion Jeffrey Herlings.

Fitment:

HONDA CR/CRF 04-13

KAWASAKI KX/KXF 06-13

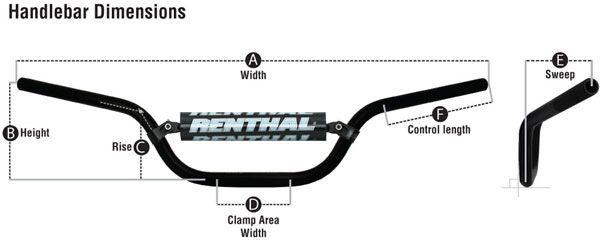

Bar Dimensions (MM)

Width / Dimension A 804

Height / Dimension B 104

Rise / Dimension C

Clamping Width / Dimension D 105

Sweep / Dimension E 54

Control Length / Dimension F 188

Dimension G 117

Height / Dimesnion BV 104

Mounting Diameter 28.6mm / 1+1/8''
