Piston kit 54.01mm Bore 53.96 Wossner 8218DB (+0.01)

Gas Gas
TXT 125 2003 - 2009, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany Part No. 56-W236.B.WO

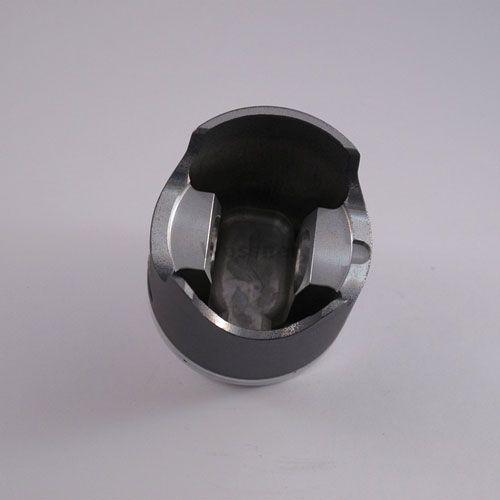

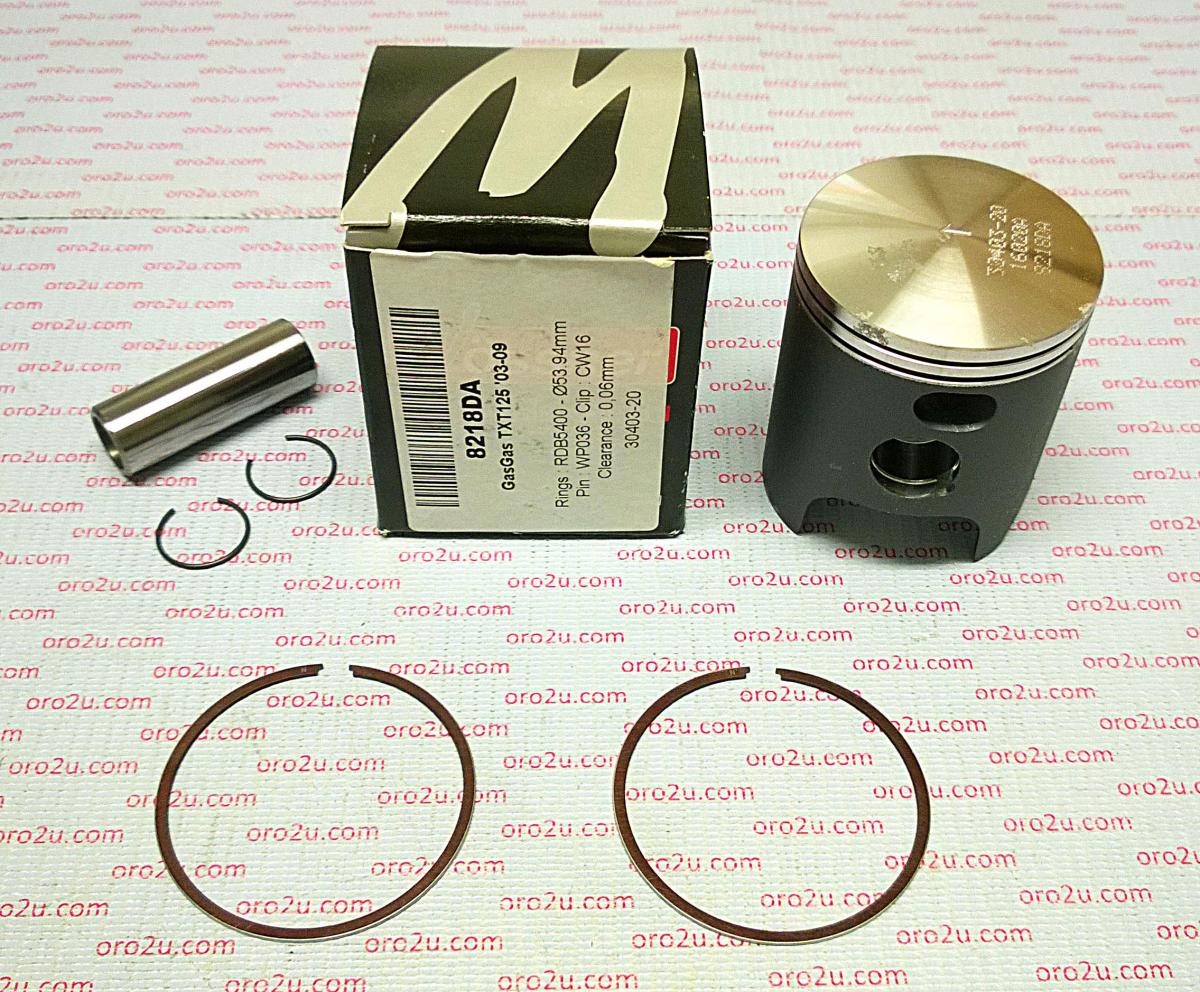

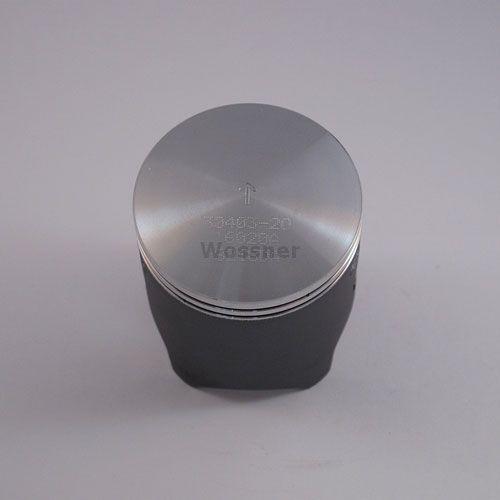

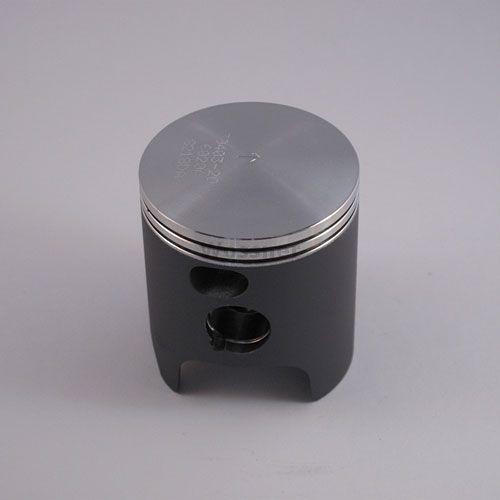

Wossner Piston GasGas TXT 54 mm Bore (PN# 8218DB)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5400 X 2 Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
