Piston kit 48mm Bore 47.90 Wossner 8285DA (STD) TM
85 2008 - 2013,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany Part No. 56-W4957.A.WO

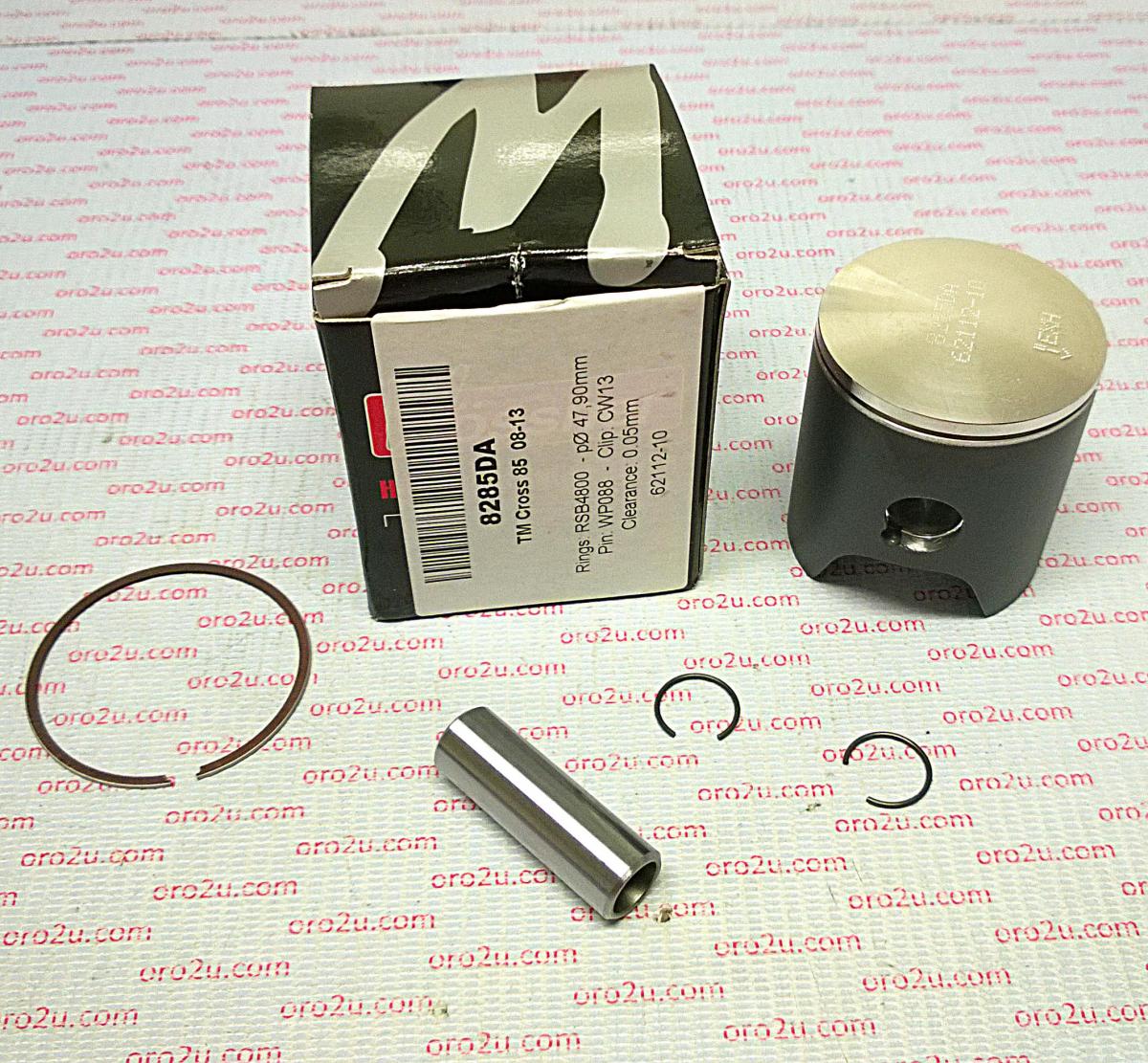

Wossner Piston Kit 47.85mm
Lock P/N CW13
Pin P/N WP088
Ring Set P/N RSB4800
Rod P/N P2068
(PN# 8285DA) Display (cm3) 85
Hub stroke (mm) 47.00
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 24.00
Theorectical weight (G)
