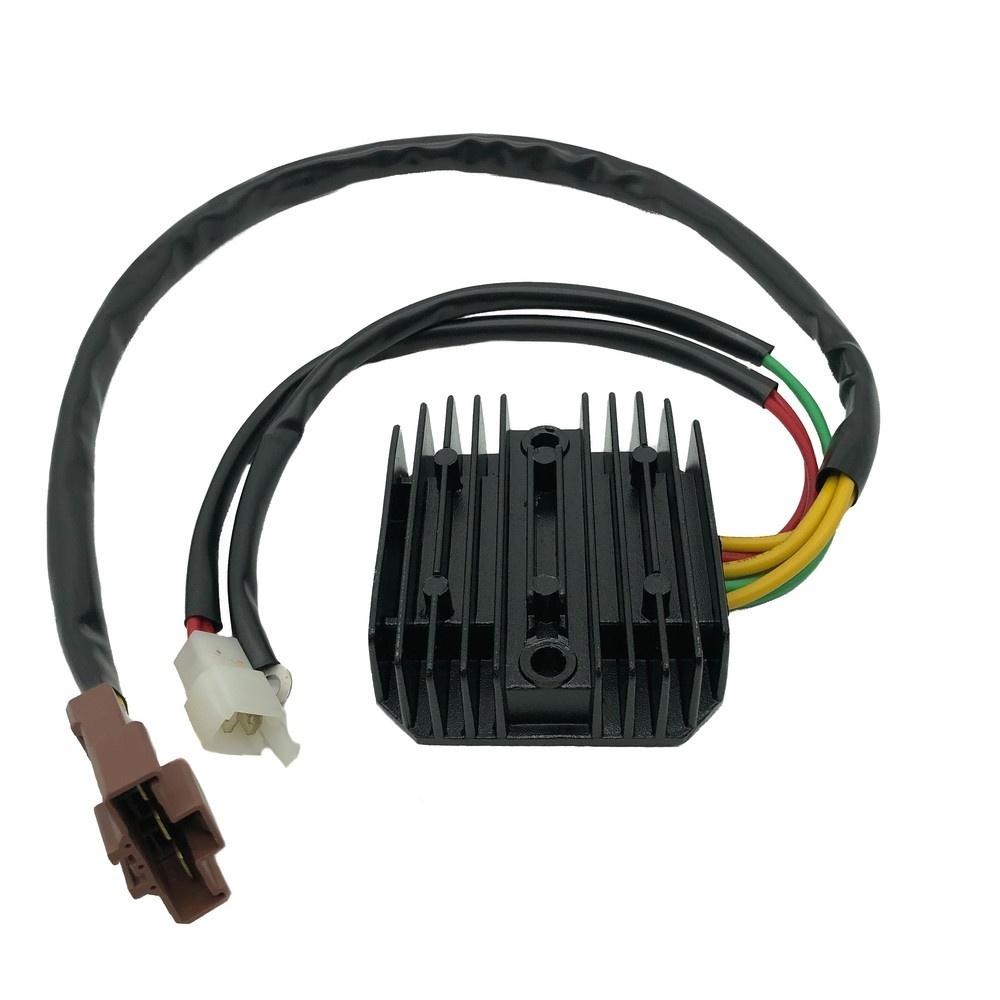

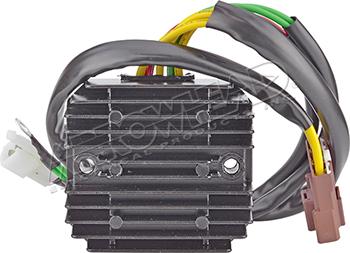

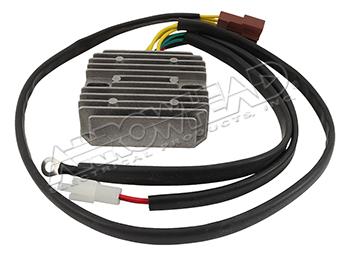

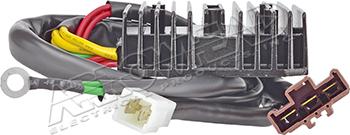

ARROWHEAD REGULATOR KTM ROAD HOT SHOT, ARROWHEAD AKM6004, 62511034100, 62511034000

KTM

Enduro R 690cc (2010)

Enduro 690cc ( 2008 a 2013)

SMC 690cc (2008 a 2010)

SMR 990cc (2011)

Super Enduro R 950cc

(2008 a 2009)

Supermoto 950cc (2005 a 2007)

Supermoto R / T 990cc (2010)

Technical specifications




Tension (voltage)
12 [V]


Corriente (current)
35 [A]


Tipo de entrada (input type)
TRIFASICO


Tecnologia (technology)
SCR


Tipo de salida (output type)
CC


Alto (height)
28 [mm]


Ancho (width)
80 [mm]


Largo (length)
90 [mm]


Entre centro (pitch)
70 [mm]


Con sensor (with sensor)
NO



dze products that apply to




Brand
Model
Version
Displacement
Year
OEM




KTM
Enduro

690
from 2008 to 2010
62511034100


KTM
Enduro
R
690
from 2009 to 2013
62511034100


KTM
SMC

690
from 2008 to 2013
62511034100


KTM
Super Enduro
R
950
2006
62511034000


KTM
Supermoto
T
990
from 2009 to 2010
62511034100


KTM
Supermoto
R
990
from 2009 to 2011
62511034100


KTM
Supermoto

950
from 2005 to 2007
62511034000


KTM
Supermoto
R
950
from 2007 to 2008
62511034000


KTM
Supermoto

990
from 2008 to 2009
62511034100


Reemplazo
Shindengen



SH541SB


Reemplazo
Shindengen



SH541KF

- Meets or exceeds OEM quality.

- Direct oem replacement.

- All products are factory tested for 100% reliability at point of sale

- DZE products are a high quality replacement part and carries our guarantee of your satisfaction.

- Note. No Returns on Electrical Parts.

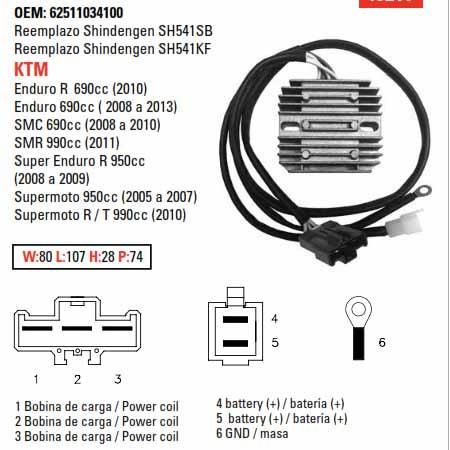

90mm L x 80mm W x 28mm T

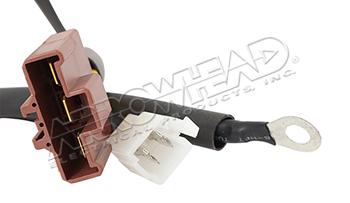

Plug #1 - 3 Yellow Wires - Charging Coil - 23.5 Inches OAL

Plug #2 - 2 Red Wires (B+) - 13 Inches OAL

Eyelet - 2 Green Wire (B-) - 13 Inches OAL

Mounting Holes - 2 Round - Distance 74.5mm (Outer), 61mm (Inner)

Cross reference numbers ONLY.

Reemplazo Shindengen SH541SB Reemplazo Shindengen SH541KF, 62511034100, ESP2504, AKM6004    ARROWHEAD    ESP2504    ARROWHEAD (OEM)    230-58221    J & N    230-58222    J & N 62511034000    KTM    62511034100    KTM    SH541SB



2008 KTM Dirt Bike 690 Enduro

2009 KTM Dirt Bike 690 Enduro

2010 KTM Dirt Bike 690 Enduro

2011 KTM Dirt Bike 690 Enduro

2011 KTM Dirt Bike 690 Enduro R

2012 KTM Dirt Bike 690 Enduro R

2013 KTM Dirt Bike 690 Enduro R

2008 KTM Dirt Bike 690 SMC

2009 KTM Dirt Bike 690 SMC

2010 KTM Dirt Bike 690 SMC

2008 KTM Dirt Bike 690 Super Enduro

2005 KTM Dirt Bike 950 SM

2006 KTM Dirt Bike 950 SM

2007 KTM Dirt Bike 950 SM

2007 KTM Dirt Bike 950 SMR

2008 KTM Dirt Bike 950 SMR

2006 KTM Dirt Bike 950 Super Enduro

2007 KTM Dirt Bike 950 Super Enduro

2008 KTM Dirt Bike 950 Super Enduro

2009 KTM Dirt Bike 950 Super Enduro

2010 KTM Dirt Bike 990 SMR

2011 KTM Dirt Bike 990 SMR

2010 KTM Dirt Bike 990 SMT
